VERSATILE PNEUMATIC WORKHOLDING

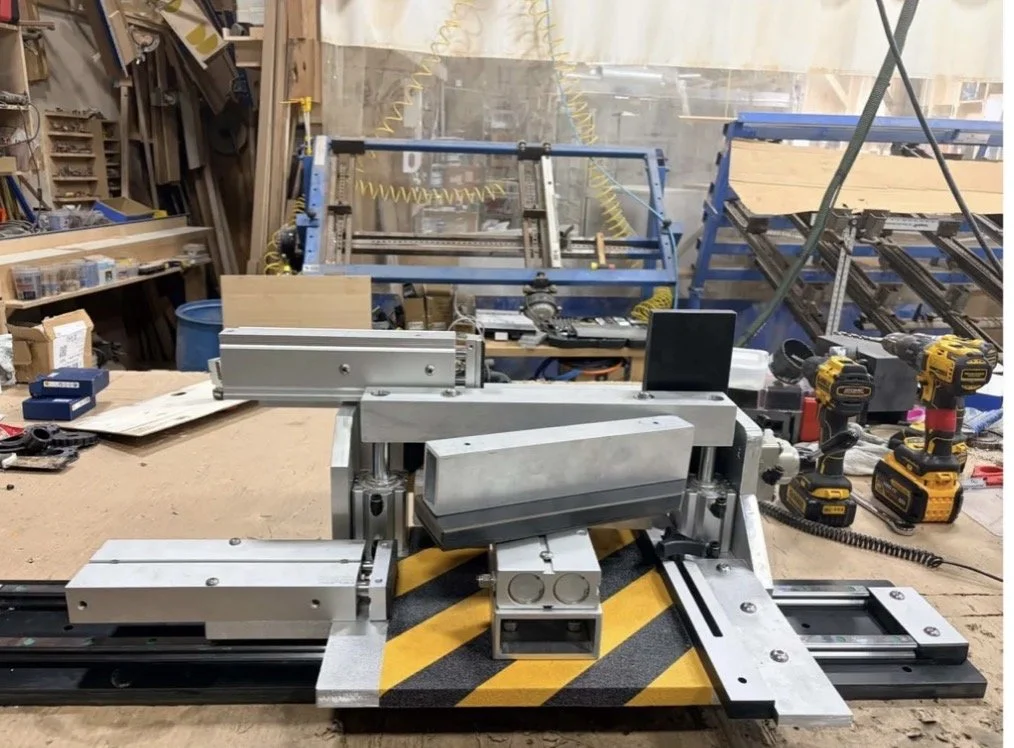

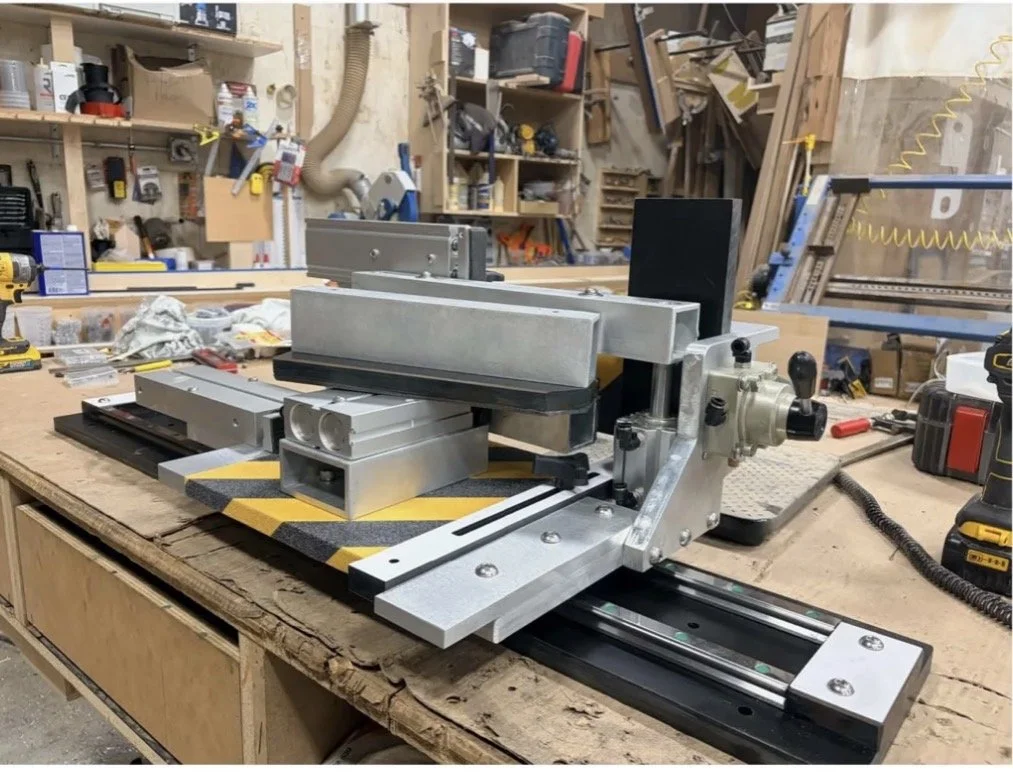

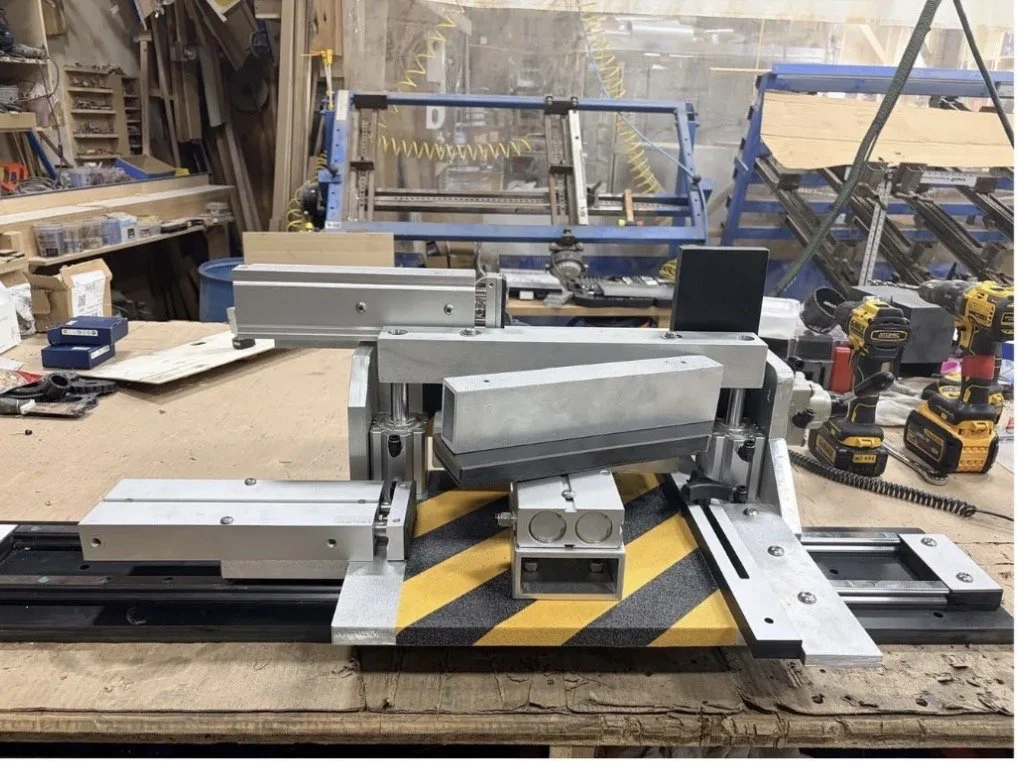

WCT Lock Miter Machine
MUCH MORE THAN LOCK MITERS.
One cutter. One setup. Vertical and horizontal lock-miter operations, plus the versatility
of a heavy-duty standard coping sled.
STANDARD MODEL
$4,600.00
48-INCH VERSION
$8,200.00
STANDARD MODEL CAPACITY
12-inch width capacity with a 1.5-inch backer block in place.
1.5-inch material thickness capacity in the vertical position.
Handles horizontal material well over 3 inches thick when used as a standard coping sled.
ONE SIMPLE FENCE. TWO DIRECTIONS OF ADJUSTMENT.
The standard double-function fence combines vertical and horizontal adjustment in one simple
fence for easy positioning. The 48-inch version includes three double-function fences for longer
materials.
BUILT FOR REAL PRODUCTION
• Approximately 90 lb machine weight (standard model)
• 3/4-inch main table and 3/4-inch phenolic table
• 20 mm Hiwin-style linear guides
• Vertical clamping cylinders: 600 lb combined force
• Horizontal clamping: 750+ lb combined force
• 6061 aluminum plate and structural aluminum extrusions
• Structural extrusion wall thickness: 3/16 to 5/16 inch
INDUSTRIAL MATERIALS. SERIOUS CLAMPING POWER.
Heavy plate and thick-wall structural extrusions, built for demanding shop work.
EMAIL US FOR MORE INFORMATION.
