UNO Premium Kit
The standard fence takes approximately one to two minutes - or less - to position, making this package an
excellent choice for shops that primarily produce a few standard sticking widths.
The package includes:
■ Complete UNO processing kit
■
■
■ Special precision installation and alignment bushing
■ Complete double-sided cope-and-stick capability
■ Short-part sticking using the coping table
PRODUCTION: 45-60 cabinet doors per hour with one operator.
Maximum sticking width: 10 inches.
Shaper is not included.
SHAPER REQUIREMENT: To use an UNO kit, we recommend a shaper with a 1-1/4-inch spindle and 4
inches of tool-stack capacity. A smaller-diameter spindle may be used, but it is not recommended.
Regardless of spindle diameter, the shaper must provide a full 4 inches of usable tool-stack capacity
beneath the spindle nut when the nut is fully engaged. This requirement must be met to install and
operate the product safely.
7
$12,500.00
STANDARD-DUTY FEED PACKAGE
The complete UNO processing system with our WCT feed unit, standard-duty
For intermittent use; not recommended for large production.
WCT feed unit with standard-duty single-phase feed motor
Pre-coped parts as short as 3 inches can be sticked through the WCT feed unit.
STANDARD-DUTY SINGLE-PHASE FEED MOTOR
Suitable for up to one hour of continuous use. This is not a continuous-duty
motor and is not recommended for large production.
Rails: allow 1/4 inch extra length over the desired finished size.
Each end pass removes 1/8 inch, for 1/4 inch total.
Spring-loaded snipe fence and bolt-down outboard fence
STOCK PREPARATION - SLIDING TABLE ONLY
Only short parts stuck on the sliding table need 1/8 inch extra width,
because the sliding table is set to remove 1/8 inch per pass.
Feeder sticking requires no precise 1/8-inch oversizing.
single-phase motor, spring-loaded snipe fence, and bolt-down outboard fence.
UNO PREMIUM KIT -
SHAPER NOT INCLUDED
8

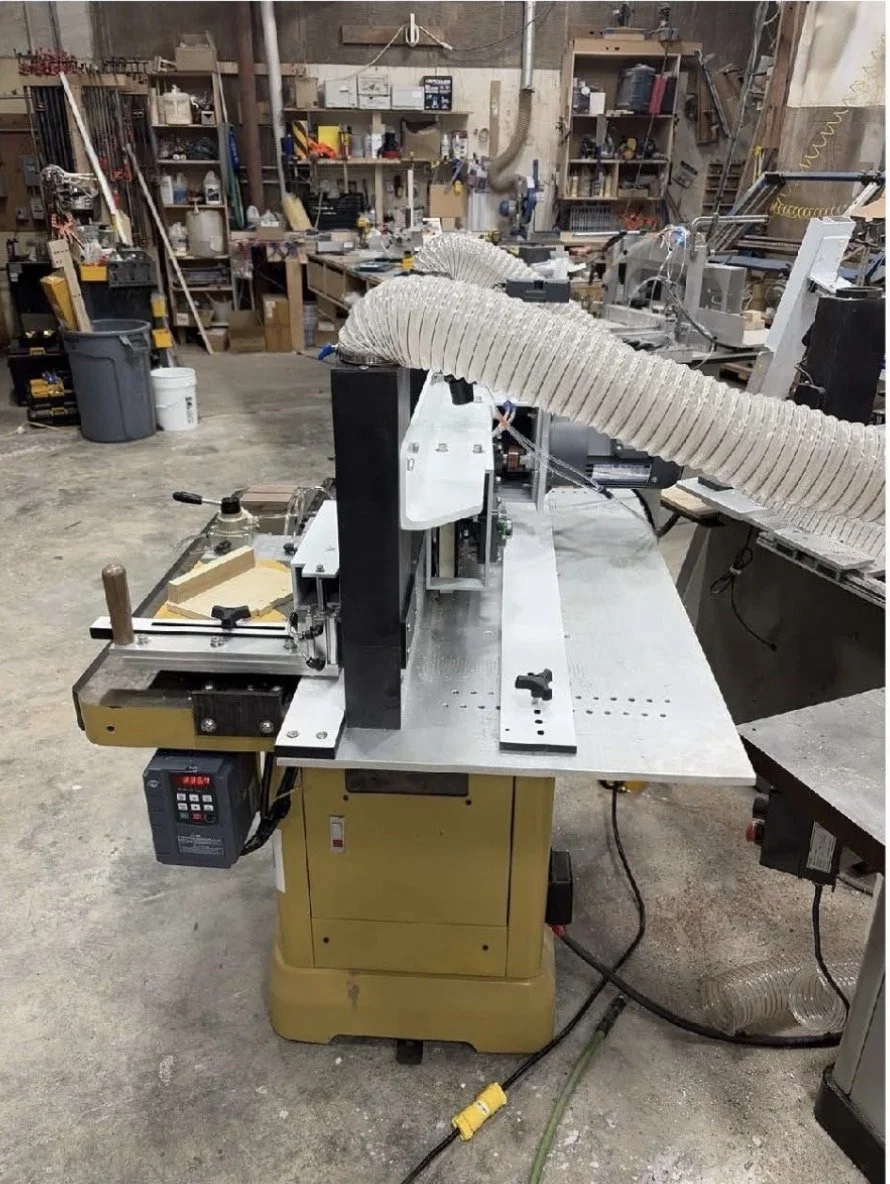

Photos are representative. Actual kits come with the linear table guide bolted directly to the
aluminum top, since there is no machine table below it. No installation of the parts we provide is
required other than bolting the entire aluminum table to your shaper. Final photos of these new
kits will be available over the next two weeks.
UNO PREMIUM KIT - $15,000
