SMALL-SHOP PRODUCTIVITY
UNO Basic Phenolic Kit
Perfect for smaller shops producing one or two kitchens per week - or
less. At one kitchen per week, the average estimated payback and ROI is
only 6-8 months.
Built entirely from rugged 3/4-inch phenolic, the kit includes:
■ UNO main processing plate
■
■ Special installation and alignment bushing
■ Mounting provisions for your power feeder
■
The precision installation bushing aligns the UNO kit to within a few thousandths of an inch every time.
Installation takes approximately 15-20 minutes. Once installed, simply mount your feeder and start making
doors.
PRODUCTION: 30-45 cabinet doors per hour with one operator.
Maximum sticking width: 8 inches with the standard fence. The fence can easily be modified when occasional
wider parts need to be processed.
Short parts are safely sticked on the coping table. Raise the shaper spindle to position the sticking head at the
correct height, secure the parts, and run them using the coping table.
A full-size multi-wheel or track feeder is strongly recommended. Mini feeders should not be used.
Power feeder and shaper are not included.
SHAPER REQUIREMENT: To use an UNO kit, we recommend a shaper with a 1-1/4-inch spindle and 4
inches of tool-stack capacity. A smaller-diameter spindle may be used, but it is not recommended.
Regardless of spindle diameter, the shaper must provide a full 4 inches of usable tool-stack capacity
beneath the spindle nut when the nut is fully engaged. This requirement must be met to install and
operate the product safely.
POWER FEEDER NOT INCLUDED
Customer must supply their own power feeder.
Short dust risers, UNO dust shroud, and two 4-inch dust collection ports
$5,500.00

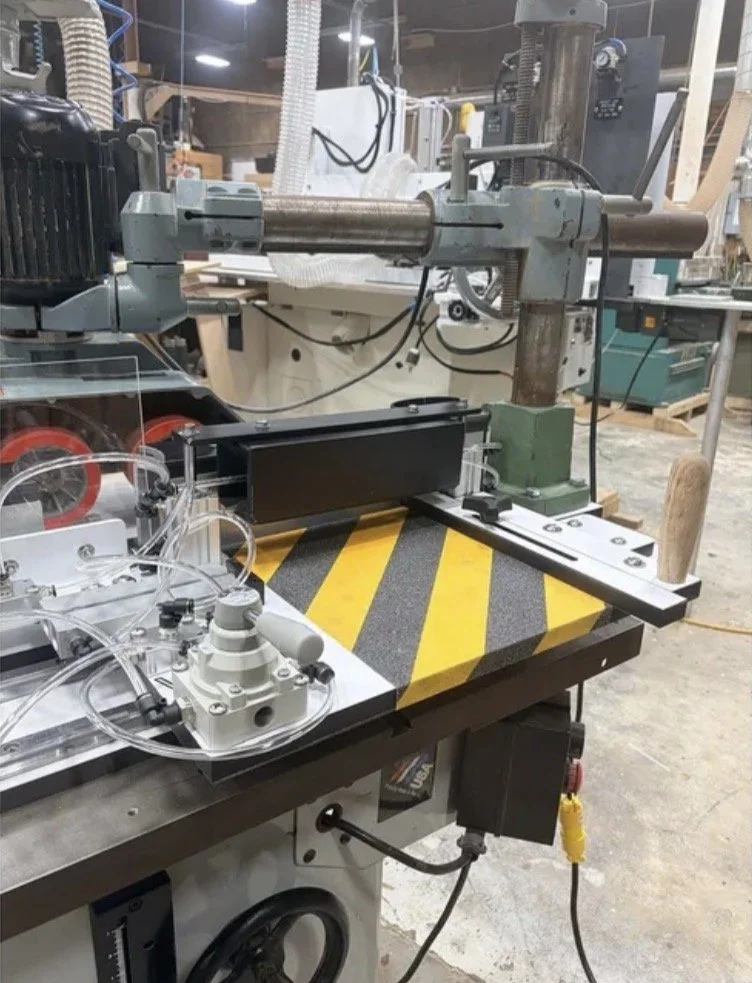

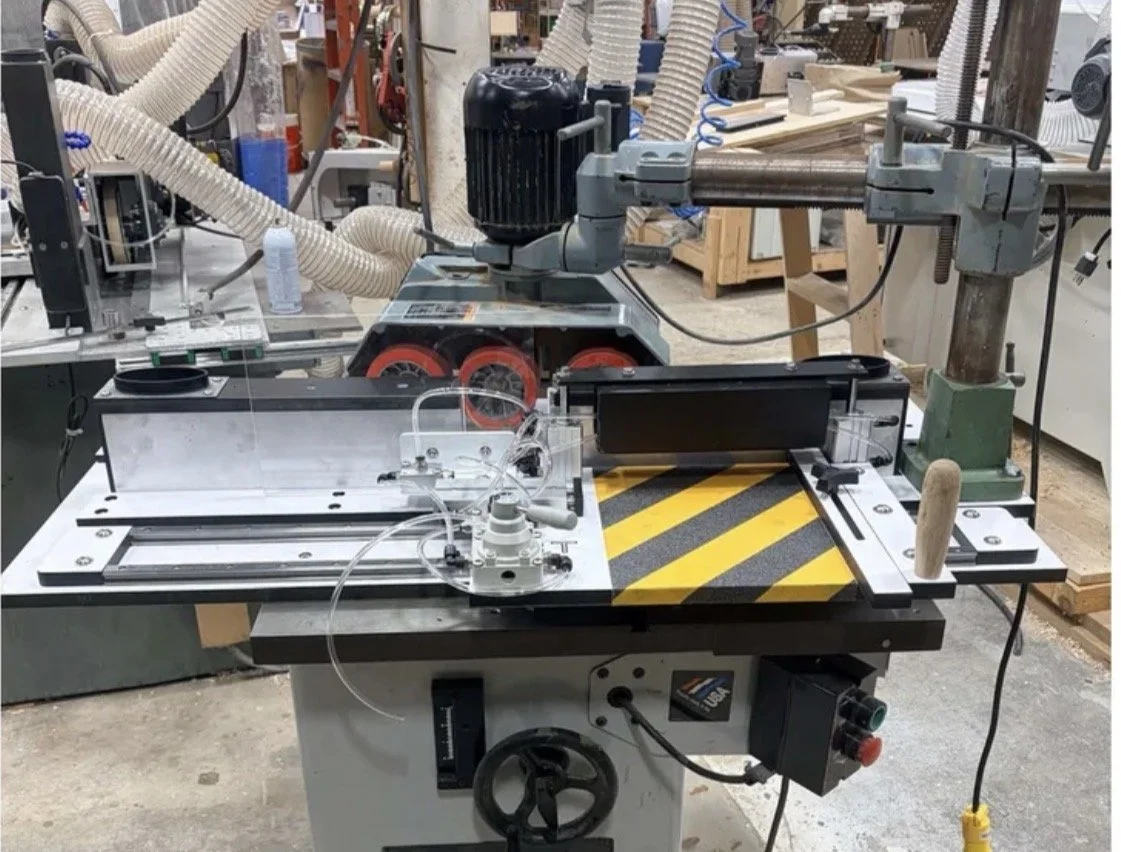

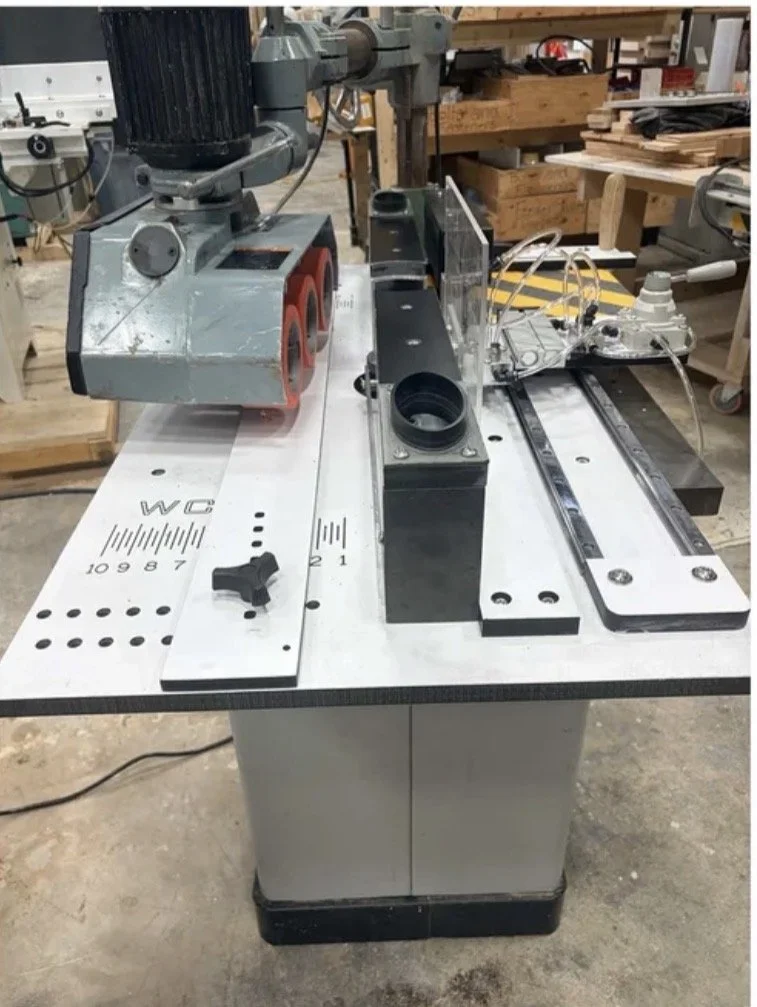

Cope, stick, and process panels on the same machine with the UNO Phenolic Kit.
Complete double-sided cope-and-stick capability, plus panel processing
Panels: 9/16-inch maximum thickness; intended for Shaker-door back scoops.
NEW SELF-ADJUSTING SPRING-LOADED SNIPE FENCE
Feeder sticking requires no precise 1/8-inch oversizing.
Short-part sticking on the sliding table: allow 1/8 inch extra width.
The sliding table removes 1/8 inch per pass.
Rails: allow 1/4 inch extra length; each end pass removes 1/8 inch.
