Sliding Tenoning/Coping Attachment

WCT-L225X125X075

$1900 limited time offer

Table only $1450

Send us a message for payment options and orders.

Turn any Shaper, Tenoner or large scale table saw with 12'' or greater blade capacity into a safe accurate production coping / cutting machine for a fraction of the cost. For instance a saw with a 16'' blade capacity would have 2'' cut using the standard rails and a 3'' cut capacity with the optional one pc rail.

This is the newest addition to our industrial series of linear sliding table coping sleds and this introductory price will not last long!   If you've struggled with regular inaccurate coping tables, t slot tables and fences or like me have a sliding table shaper that has horrible accuracy then this is going to be one of the best purchases you've ever made! Designed and made by a journeyman woodworker and engineer with over 30 years of experience in the historical millwork and cabinetry field. For comparison using one of our new tables is like going from a standard biscuit jointer to a Lamello zeta P2. There's no comparison between the two other than what they do.

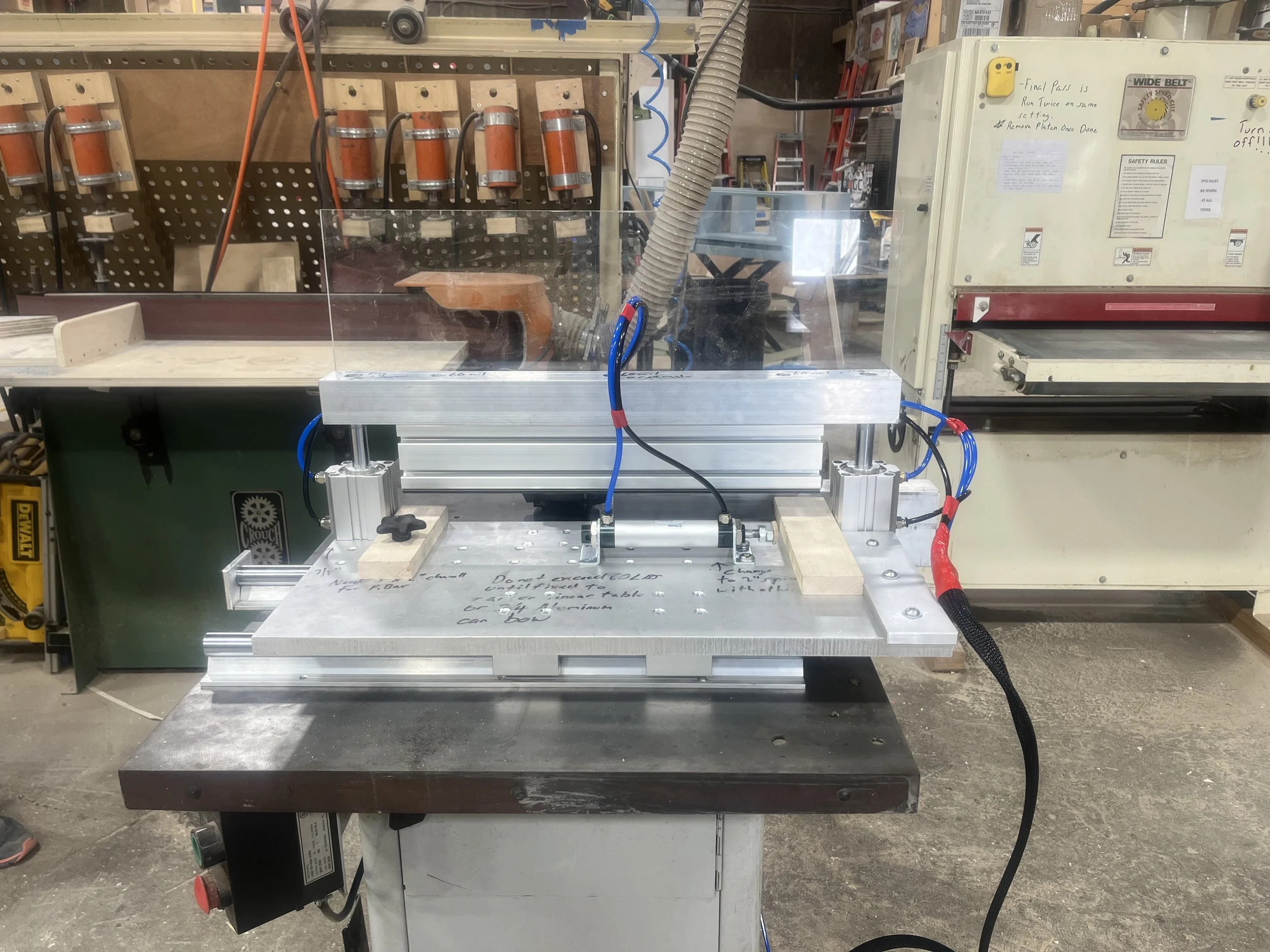

This clamp has a capacity of 17'' in rail width x any length you can handle x 2.25'' clamping height and over 5'' with quick change of pressure bar. Unlimited length of door rails. 3/4'' thick solid 6061 Aluminum top. Solid aluminum and stainless steel linear rails. Standard length of 800mm rails 31.5'' available up to 2200 mm length and longer with special order. Many accessories will be available soon. New fences with solid and fixed stops. 0.75'' thick solid aluminum extension tables in different lengths for those long and extra long rails and part. V shaped fence for 45 degree parts for slotting, finger jointing and whatever you can think of. Fully adjustable variable angled fences in varying lengths. Optional clamp plates for different styles sizes of material. Quick change clamp brackets and many many more are soon to come and all will fit the standard machine that comes with the standard bored template for all future designs.

Larger one pc linear rail is available for purchase up to 84'' in length with a 2.25'' overall height off machine table.

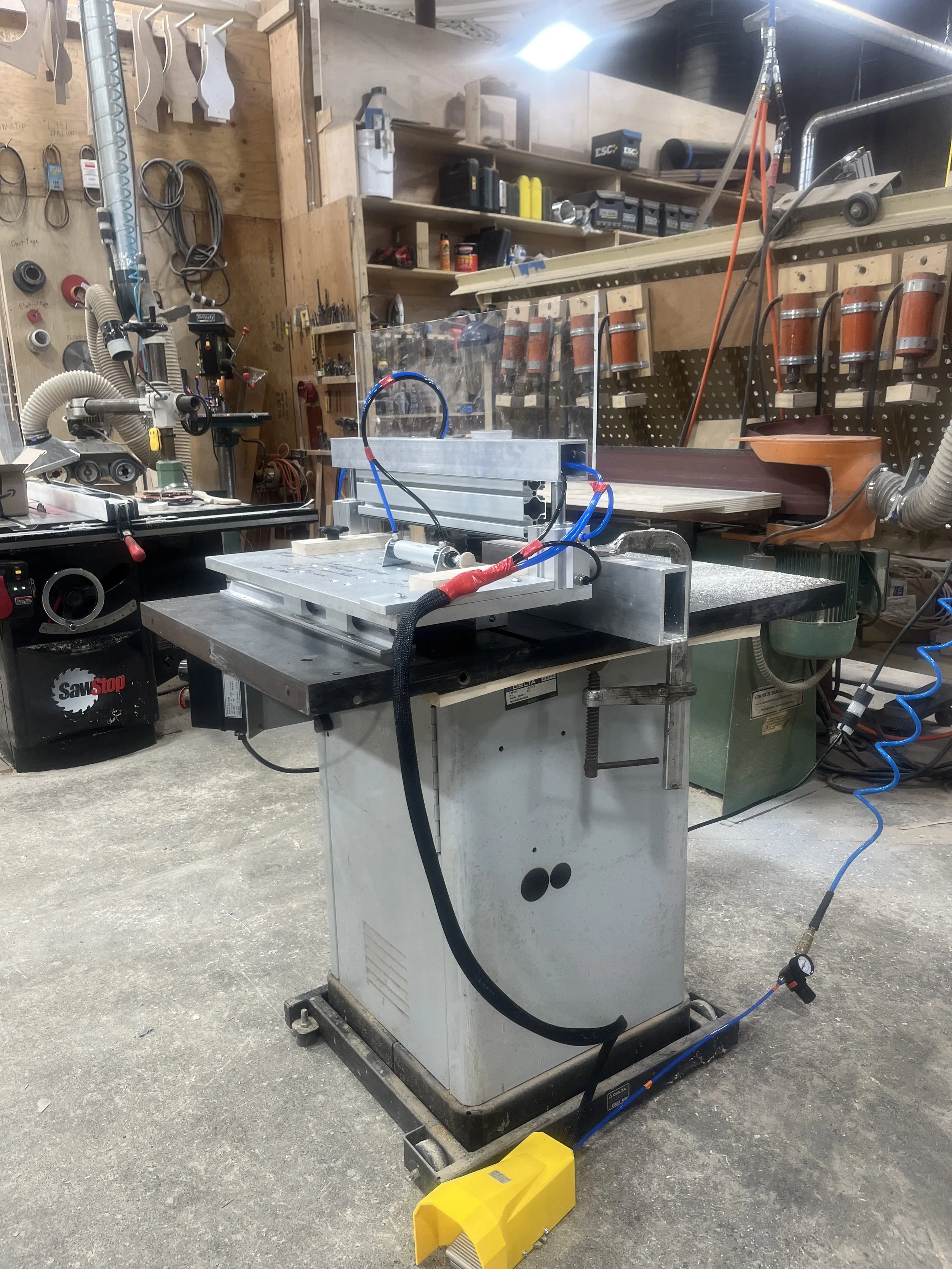

For instance Delta machine in pics shows is shown with standard rail which sits 3.125'' above the table.

This sled is perfect for the shop that does everything. You can cope 5 or more cabinet door rails safely and accurately at a time saving an amazing amount of time or do giant exterior bottom door rails of over 17'' knowing that the parts will come out perfect every time. Vertical clamps have well over 500lbs of clamping force on the combined double pressure bar. Pressure is easily adjusted for harder or softer woods via pressure control switch located at the operators finger tips.   If you already have a sliding table shaper purchase the table only or purchase the entire setup for standard machines. If your existing table does not slide perfectly true then I would suggest purchasing the entire unit to get the benefits of the new linear rails.
